        SCR EC Power Supply

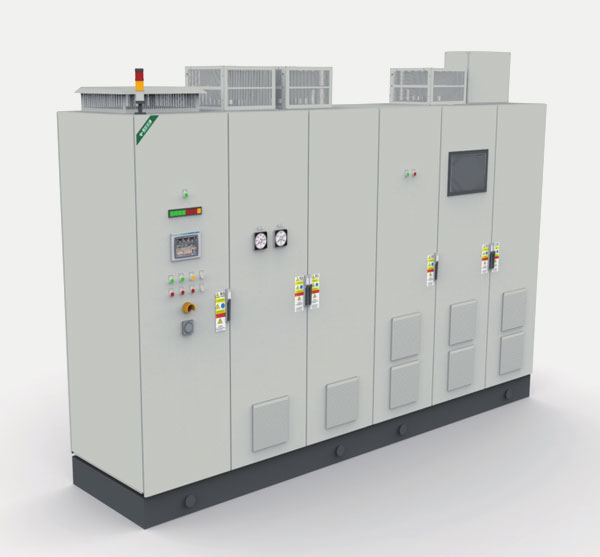

        Product Name:Electrophoretic Coating Power Supply

        Views:


        Prev:No  Next:Electrophoretic Coating Power Supply

        Certified Product

        Product Details

        Performance indexes

        ■ Input voltage: 380V/50HZ
        ■ Output pulse: 12 pulses
        ■ Control mode: voltage phase control
        ■ Stabilized voltage precision: ≤ 0.5%
        ■ Ripple factor: ≤ 3%
        ■ Level of protection: IP54


        Customized service items

        ■ Coating color: RAL7035 by default
        ■ Single/Double control system
        ■ Host computer and software
        ■ Multi-position electrophoresis

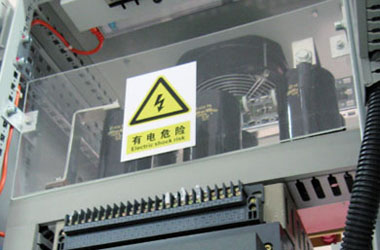

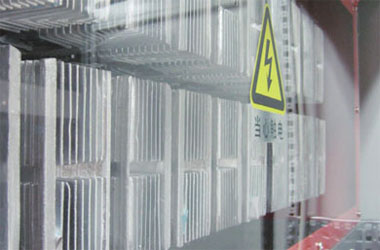

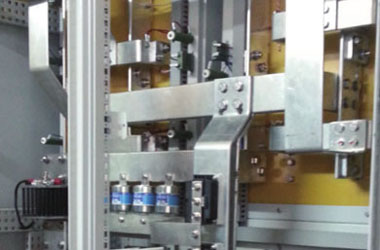

        A transparent air duct easy to maintain and repair can be used to clearly observe the running state of the radiator.  The main circuit is connected with the galvanized copper bar, so the current carrying capacity is high. The output can be equipped with a capacitor filter, effectively reducing the output ripple factor.

        Model Definition

        H Y K 2 2 - Current / Voltage
        HongCheng Electrophoretic coating power supply K:SCR
        G:IGBT
        1:Single control
        2:Double control
        1:LCD display / 485 Net work
        2:Touch screen / Custome
          Rated DC current   Rated DC voltage

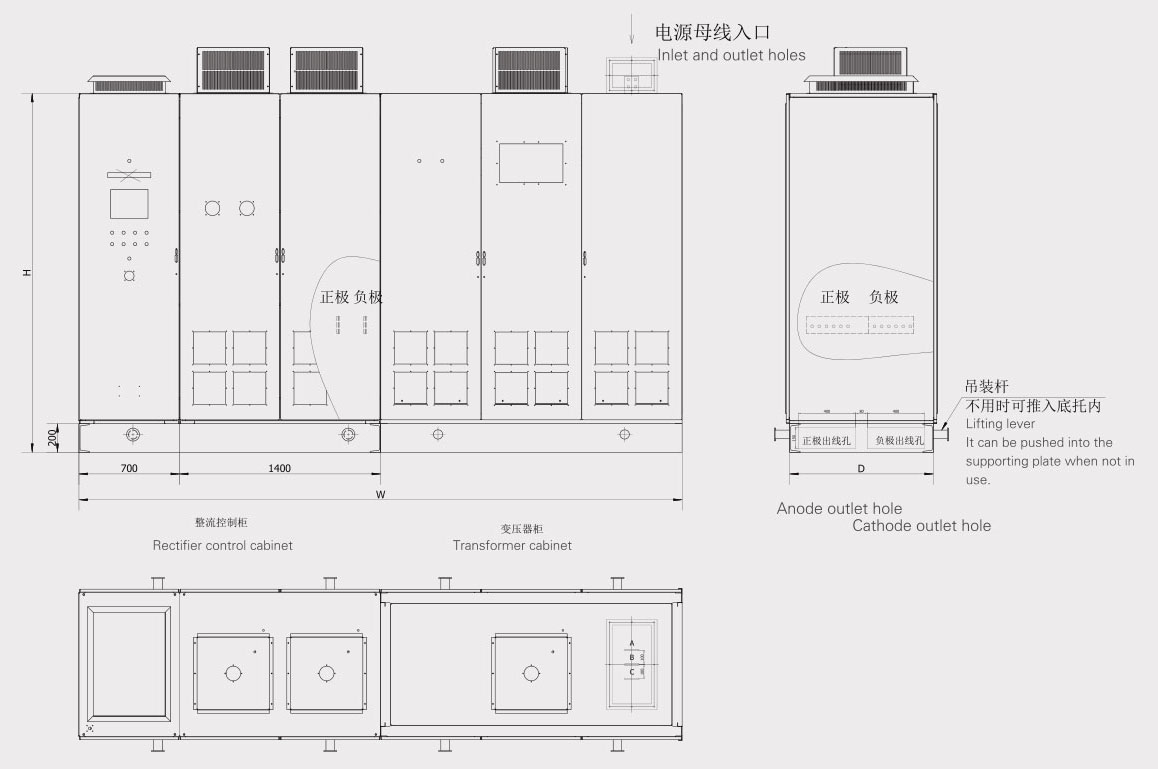

        Product Specification Table

        No. Maximum reference electrophoresis area Specification W D H Capacity / kva Weight / kg
        1 330 m² HYK22- 4000A 300V 4200 1000 2400 1440 5.34~5.71
        *350V 1680
        400V 1920
        2 416 m² *HYK22- 5000A 300V 4200 1000 2500 1800 6.1~6.3
        *350V 2100
        400V 2400
        3 525 m² HYK22- 6000A 300V 4400 1000 2500 2160 6.91~6.98
        *350V 2520
        400V 2880


         * Represents non-priority value.
        The weight is calculated value, is deviated from the actual value, and is for reference only.
